Sizing up Strength: The Impact of Size and Diameter on the Load-Bearing Capacity of Stainless Steel T Bolts

Introduction:

In the realm of fasteners, the size and diameter of stainless steel T bolts are critical factors that directly influence their load-bearing capacity and overall strength. These seemingly simple dimensions play a pivotal role in determining the suitability of T bolts for specific applications. In this blog, we'll delve into how the size and diameter of stainless steel T bolts impact their load-bearing capacity and contribute to their overall strength.

1. Understanding T Bolt Dimensions:

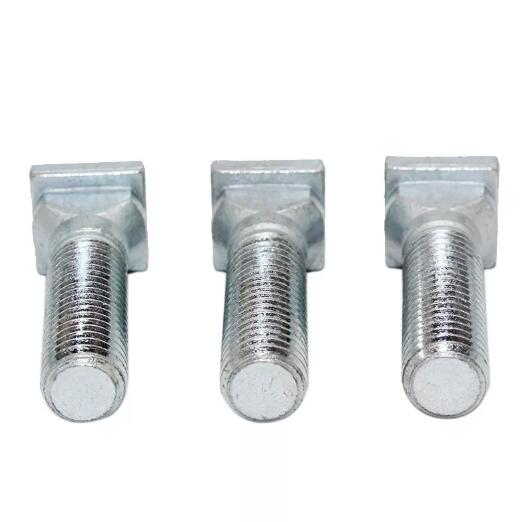

  Stainless steel T bolts come in various sizes and diameters, and understanding these dimensions is essential for selecting the right fastener for a given application. The size typically refers to the length of the threaded portion, while the diameter is the measurement across the bolt's shank.

2. Load-Bearing Capacity and Tensile Strength:

  The load-bearing capacity of stainless steel T bolts is closely tied to their tensile strength, which is the maximum amount of tensile (pulling) force the bolt can withstand without breaking. As a general principle, larger bolts with larger diameters tend to have higher tensile strength, making them capable of bearing heavier loads.

3. Diameter's Impact on Shear Strength:

  In addition to tensile strength, the diameter of T bolts also affects their shear strength. Shear strength is crucial for resisting forces that act parallel to the plane of the bolt, such as those encountered in structural joints. Larger diameter bolts generally exhibit higher shear strength, providing better resistance against shear forces.

4. Thread Engagement and Strength:

  The size and diameter of T bolts influence the length of thread engagement, which is the portion of the bolt that interacts with the nut or threaded component. A longer thread engagement generally enhances the overall strength of the fastened joint, contributing to the load-bearing capacity of the T bolt.

5. Correlation with Cross-Sectional Area:

  The cross-sectional area of a T bolt is directly related to its diameter. The larger the cross-sectional area, the greater the ability of the bolt to distribute and carry loads. This correlation emphasizes the importance of diameter in determining a bolt's load-bearing capacity.

6. Effect on Fatigue Strength:

  The size and diameter of T bolts also impact their fatigue strength, which is crucial in applications where cyclic loading is involved. Larger bolts with greater diameters often exhibit improved fatigue resistance, making them suitable for enduring repeated stress and load cycles.

7. Consideration of Bolt Grades:

  It's essential to note that the impact of size and diameter on load-bearing capacity can vary based on the specific grade of stainless steel used in T bolt manufacturing. Different grades may have different mechanical properties, influencing how they respond to loads.

8. Practical Considerations in Applications:

  When selecting stainless steel T bolts for a specific application, engineers and designers must consider factors such as the expected loads, environmental conditions, and the overall structural requirements. Matching the right size and diameter to the application is crucial for ensuring the desired level of strength and reliability.

Conclusion:

Size and diameter are not just arbitrary dimensions when it comes to stainless steel T bolts—they are critical determinants of load-bearing capacity and overall strength. As engineers and manufacturers navigate the intricate world of fasteners, understanding the impact of size and diameter on T bolt performance becomes fundamental to creating resilient and reliable connections in a myriad of applications. From structural engineering to machinery assembly, the size and diameter of T bolts underscore their role as foundational components in the fabric of modern engineering and construction.
