Ensuring Precision: How Extrusion Lines Maintain Uniformity and Consistency in Pipe Production

2024-04-01

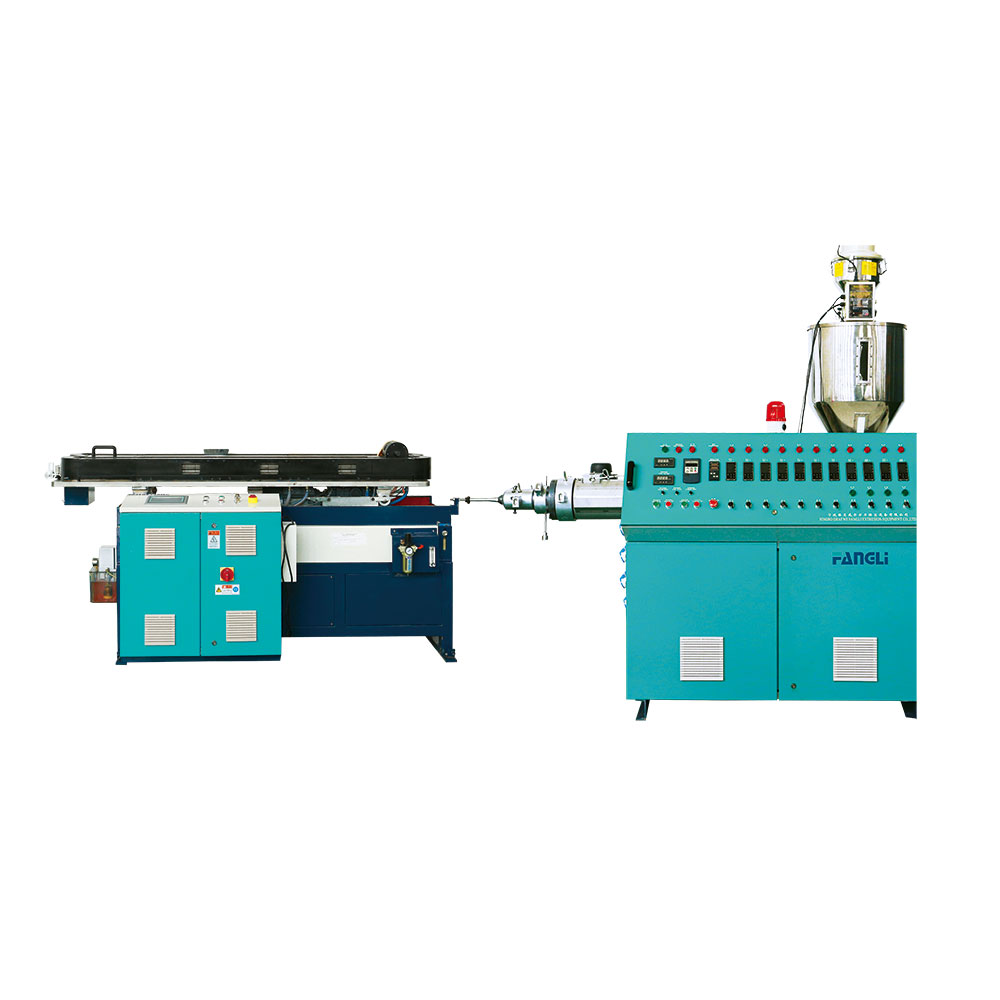

In the realm of industrial manufacturing, precision and consistency are paramount. Nowhere is this more evident than in the production of pipes through extrusion lines. These sophisticated systems are designed to extrude molten polymer material into pipes with precise dimensions and properties. In this blog, we'll explore the intricate mechanisms and processes that extrusion lines employ to ensure uniformity and consistency in pipe production, ultimately delivering high-quality products that meet stringent industry standards.

Understanding the Importance of Uniformity and Consistency

Before delving into the mechanisms of extrusion lines, it's crucial to understand why uniformity and consistency are critical in pipe production. Pipes used in various applications, such as drainage systems, cable conduits, and sewerage networks, must meet specific dimensional and performance requirements to ensure optimal functionality and reliability. Any deviations or inconsistencies in size, shape, or material properties can compromise the integrity and performance of the pipes, leading to issues such as leakage, blockages, or structural failures.

Precision Control Systems

One of the primary mechanisms by which extrusion lines ensure uniformity and consistency is through precision control systems. These systems utilize advanced sensors, actuators, and feedback mechanisms to monitor and adjust key parameters throughout the production process. Parameters such as temperature, pressure, speed, and material flow are continuously monitored and fine-tuned to maintain optimal conditions for extrusion.

Die Design and Calibration

The design and calibration of the die head play a crucial role in achieving uniformity and consistency in pipe production. The die head is responsible for shaping the molten polymer material into the desired pipe profile. Modern extrusion lines feature precisely engineered die heads with customizable profiles and precise tolerances. Through meticulous calibration and adjustment, these die heads ensure that the extruded pipes meet exact specifications in terms of diameter, wall thickness, and corrugation pattern.

Cooling and Setting

After exiting the die head, the extruded pipe undergoes a cooling and setting process to solidify its shape and dimensions. Cooling systems, such as water baths or air cooling units, are carefully calibrated to provide rapid and uniform cooling across the entire surface of the pipe. This prevents deformations and warping and ensures dimensional stability and accuracy.

Haul-off and Cutting

Once cooled, the extruded pipe is pulled through the production line by a haul-off unit at a controlled speed. High-precision haul-off units maintain consistent tension and speed, ensuring uniformity in pipe dimensions and surface finish. Automated cutting systems then precisely cut the pipe to the desired length, further enhancing uniformity and consistency in the final product.

Quality Control Measures

Throughout the production process, extrusion lines employ rigorous quality control measures to detect and rectify any deviations or defects. Inline sensors and cameras monitor key parameters such as diameter, wall thickness, and surface finish, allowing for real-time adjustments and corrections. Additionally, samples of the extruded pipes are periodically tested in the laboratory to ensure compliance with industry standards and specifications.

Conclusion: Precision Engineering for Superior Products

In conclusion, extrusion lines are marvels of precision engineering, designed to ensure uniformity and consistency in pipe production. Through advanced control systems, precise die design and calibration, meticulous cooling and setting processes, and rigorous quality control measures, these systems deliver high-quality pipes that meet the exacting demands of modern industries. As technology continues to advance, extrusion lines will undoubtedly play a pivotal role in shaping the future of pipe production, providing reliable and durable solutions for a wide range of applications.
